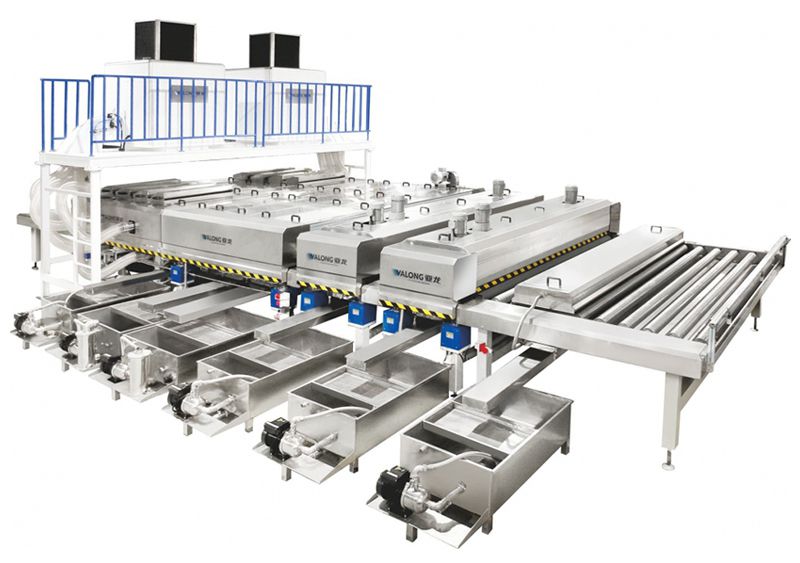

Digital Printed Glass Washing Machine, D Series

Glass Washing and Drying Machine for Digital Printed Glass

D Series

Yalong D series glass washing machine is a horizontal glass washing and drying machine specifically designed for processing digital printed glass. This glass processing machine is suitable for washing glass with thickness of up to 19mm and size range of 450-3300mm, delivering excellent cleaning quality that allows for direct digital printing after washing. Our D series glass washing machine can be connected with glass digital printing equipment.

Request a Quote
Specifications
Model Max. Glass Min. Glass Glass Thickness Working Speed
YL-D-33 3300mm 500*500mm 0-19mm 0-5m/min
YL-D-30 3300mm 500*500mm 0-19mm 0-5m/min
YL-D-25 2500mm 450*450mm 0-19mm 0-5m/min
Features
    1. Simple operation and easy use
    2. 1. PLC system with touch screen for ease of operations.
      2. High-quality variable-frequency drive motors allow for auto adjustment of working width and working speed according to the glass size.
    1. Energy conservation
    2. 1. The water rinsing section is equipped with a solenoid valve with an auto control function—water is sprayed only when the glass passes, saving water.
      2. Air knives of the unique design can effectively lower the noise level to below 85dB (within 1 meter of the machine) and reduce energy consumption.
    1. Excellent washing quality
    2. 1. Washed glass allows for direct digital printing.
      2. Pre washing section is equipped with upper disc brushes performing reciprocating moves.
      3. Upper separators are adopted to separate air knives and prevent cross water contamination in tanks.
      4. The washing section is equipped with four pairs of brushes with a bristle diameter of 0.25mm.
